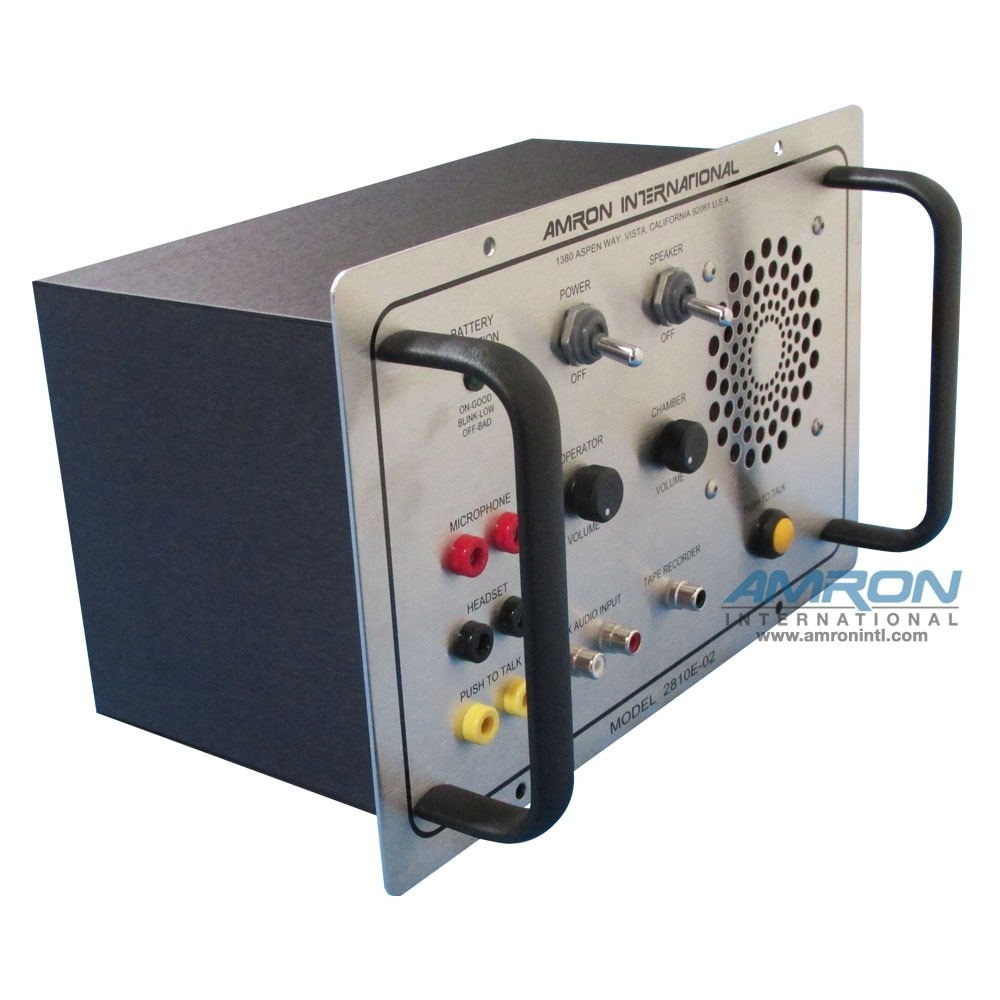

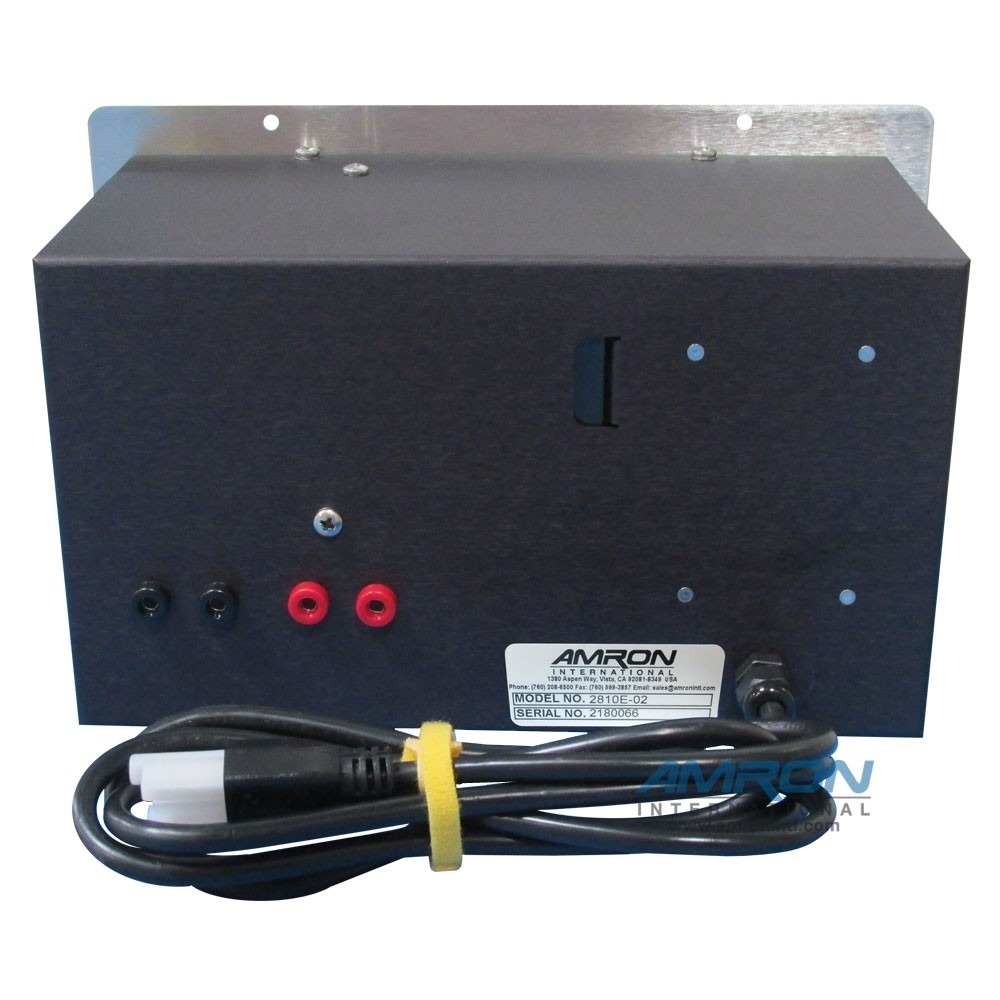

AMCOM I 2810E-02 Single Lock Chamber Communicator

In stock

Features:

35% Longer Battery Life
Better Sound Clarity
MP3 Player Input – Connects to an external audio signal for occupant entertainment.
(feature only available in 4-wire mode)
Single Lock, 1-Channel Operation

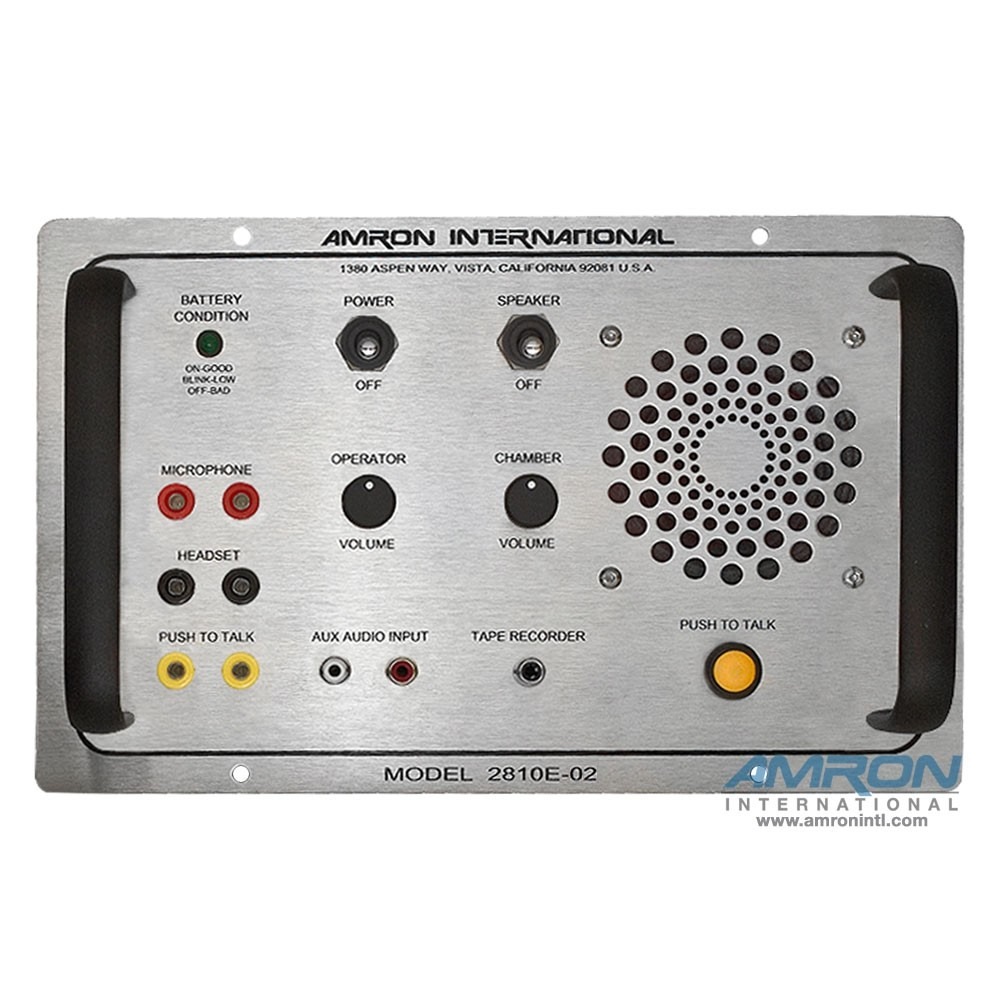

Panel Mount for Chamber Panel
Separate Volume Controls for both Operator and Lock
Two Modes of Operation, 2-Wire Mode or 4-Wire Mode
Noise Canceling Microphone
LED Power/Battery Status Indicator

Specifications:

Power Supply Voltage: 90-264 VAC, 50-60 Hz
Output Power: 20 Watts Audio
Battery Life: 85 hrs.
Panel: Stainless Steel
Enclosure: Black Anodized Aluminum
Dimensions: 6.75 in. H x 10.75 in. W x 7 in. D (17.2 cm x 27.3 cm x 17.7 cm)
Weight: 11.5 lbs (5.2 kg)

AMCOM™ I Single Lock Chamber Communicator – P/N: 2810E-02 Includes:

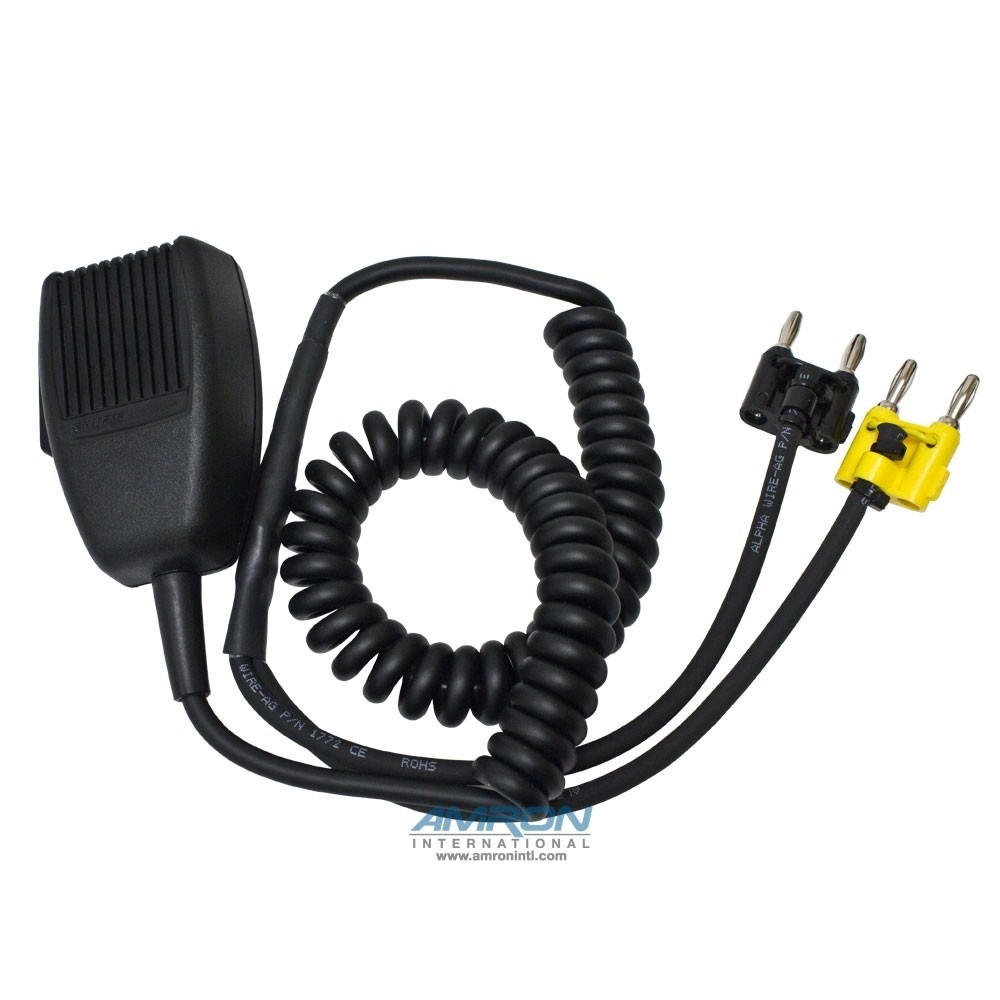

Hand-Held Push-to-Talk Microphone – P/N: 2405-28
12 VDC Sealed Lead Acid Gel-Cell Rechargeable Battery with Slide terminals – P/N: 2890-05
User Manual – P/N: 2001-UM

Notice: The 2810E-02 MP3 Audio-Out functions differently between the different chamber speakers available. Below is a list of compatible chamber speakers as well as the listening experience the occupant(s) will have.

Model 3115 Chamber Speaker with On/Off Switch

The Model 3115 Chamber Speaker allows the operator to monitor conversations within the chamber with the speaker wired in 2-Wire mode. There is a speaker on/off switch that allows the occupants to turn off the speaker for private headset conversations. The Model 3115 also feature a headset jack wired in Full-Duplex (4-Wire) mode that allows an occupant to enjoy audio entertainment by using the Model 2460-31R headset along with talking to the chamber operator without the use of the Push-to-Talk Button. This speaker is approved for US Navy chambers.

*Amron recommends the 3115 when using the MP3 Player feature on the 2810E-02 Communicator.

Important Note: The audio entertainment will not be heard from the speaker at any time. Only the occupant using the headset will hear the entertainment from the MP3 circuit.

Model 3113 Living Chamber Speaker

The Model 3113 Chamber Speaker allows the operator to monitor conversations within the chamber with the speaker wired in 2-Wire mode. The Model 3113 also feature a headset jack wired in Full-Duplex (4-Wire) mode that allows an occupant to enjoy audio entertainment by using the Model 2460-31R headset along with talking to the chamber operator without the use of the Push-to-Talk Button.

Important Note: The audio entertainment will not be heard from the speaker at any time. Only the occupant using the headset will hear the entertainment from the MP3 circuit. Also, the music will not cut out when the occupant is speaking with the chamber operator but the occupant’s message will be heard.

The follow chamber speakers can be used with the 2810E-02 communicator but they are not recommended when using the MP3 Player feature.

Model 3110 Remote Two-Way Speaker with Push-to-Talk

The Model 3110 Chamber Speaker includes a push-to-talk switch along with a headset connector. The speaker provides the occupants the ability to listen to audio entertainment either via the speaker and headset. When the occupant(s) want to talk to the operator, the push-to-talk switch on the chamber speaker must be pressed even if the headset is in use.

Model 3125 Amron Inner-Lock Combo Box with Sound Powered Phone

The Model 3125 features a talk-back speaker with on/off switch and headset jack that operates in the same manner as the Model 3115. It also includes a sound-powered phone with bracket, chamber temperature probe, scrubber power circuit wiring, chamber environmental conditioning unit wiring and electrical penetrator adaptor all together in a single pre-wired, pre-tested housing.

Model 3126 Outer-Lock Combo Box with Sound Powered Phone

The Model 3126 features a talk-back speaker with on/off switch and headset jack that operates in the same manner as the Model 3115. It also includes the sound-powered phone and bracket like the Model 3125 but does not have the additional chamber function wiring of the 3125.

DISCLAIMER NOTICE: Amron International’s communications equipment is designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our communications products (including communicators, speakers, entertainment systems, and other communications accessory items) are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Use of our products in high concentration Oxygen environments may result in serious injury and/or death.
