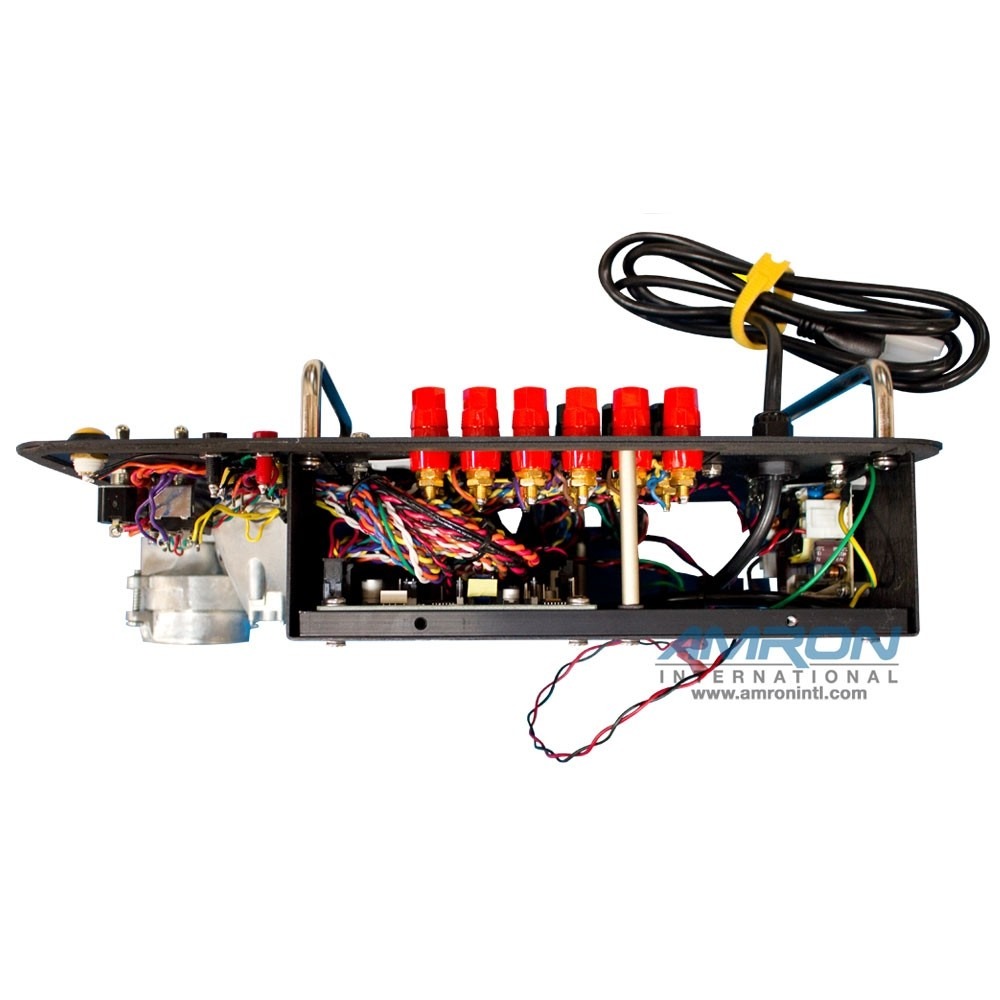

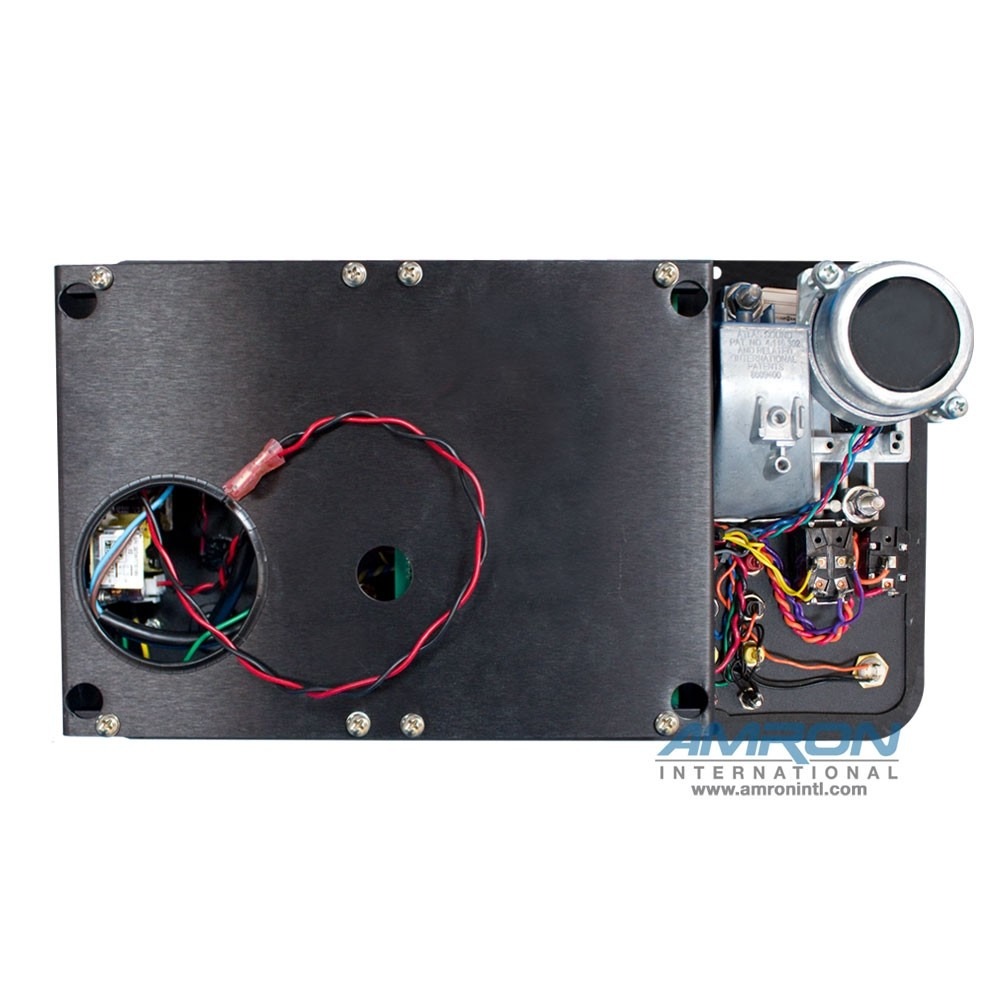

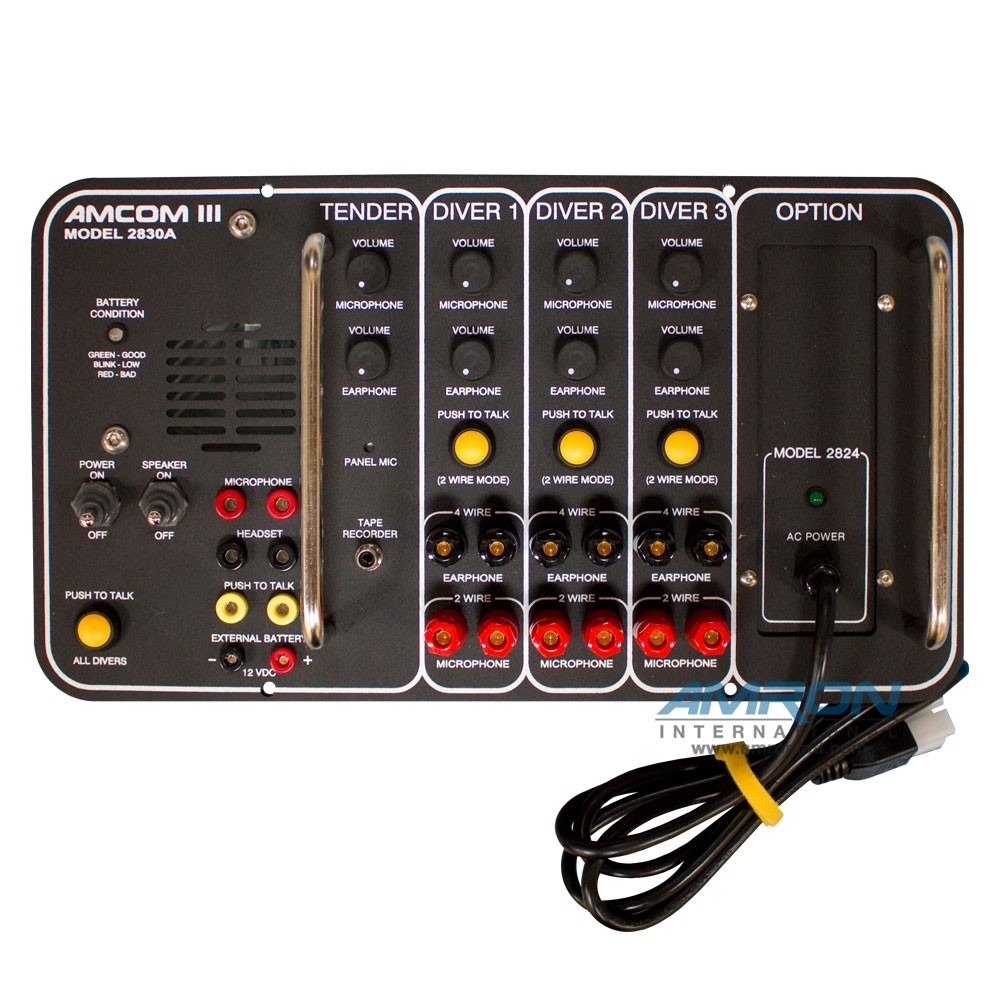

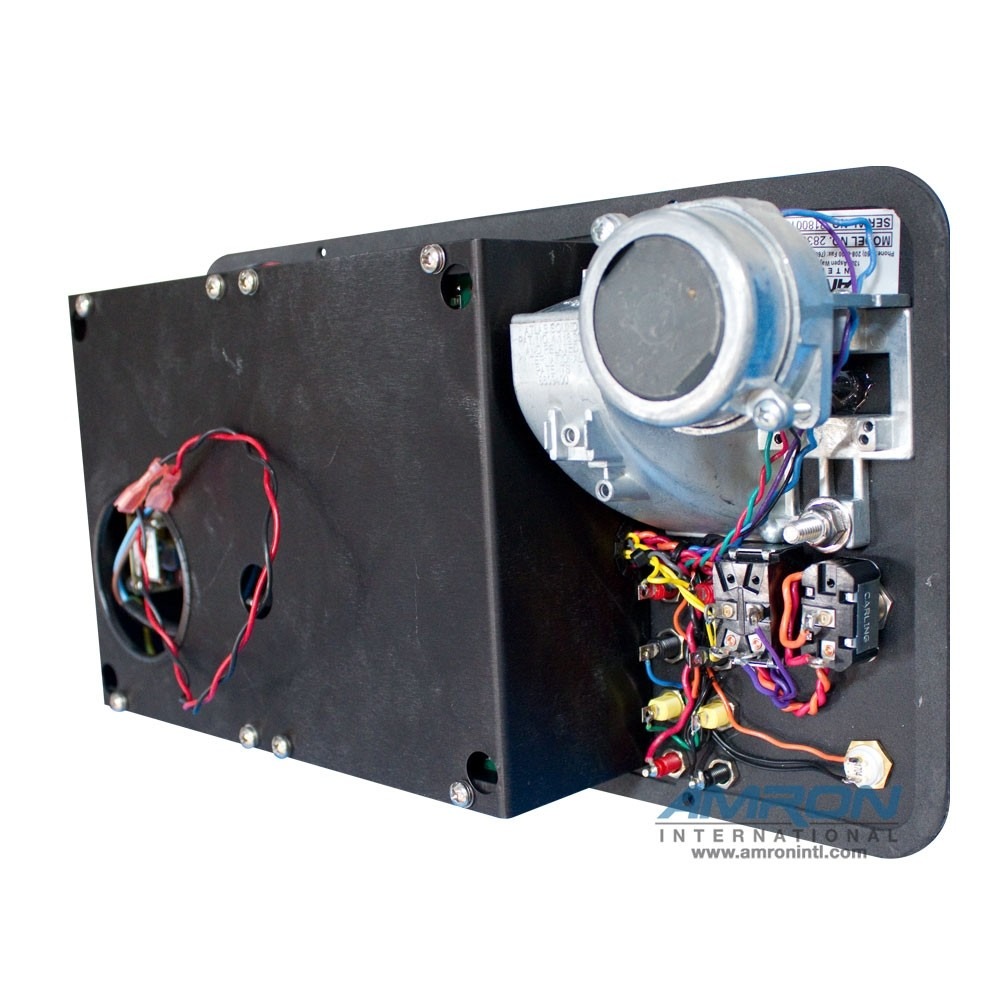

AMCOM III 2830A-04 Three-Diver Portable Communicator with Air Controls and Internal Charger

Features:

  • System capacity is four 3-Diver helium speech unscramblers
  • System has “call enunciator” with audio and visual signaling
  • Entertainment routing capacity has 2-channels with two sources per channel and includes stereo capability per channel source
  • 19 Call Circuit Channels
  • 1 Call Circuit per Transfer Lock Communications Box
  • 1 Call Circuit per Chamber Communications Box
  • 1 Call Circuit per Chamber Bunk Box

Specifications:

  • Input out/output connections: MS type (MIL-C-5015)
  • Enclosure: 19″ Retma Rack Mount, anodized aluminum
  • System capacity: Four three diver Helium Unscramblers
  • Dimensions: 8.719 in. H x 19 in. W x 13 in. D (22.1 cm H x 48.3 cm W x 33 cm D)
  • Weight (approx.): 11 lbs. (4.9 kg)

Model 3307 Communication Routing Panel – P/N: 3307 Includes:

  • (1) Hand-Held Push-to-Talk Microphone – P/N: 2405-28
  • (4) MS Connector 20 Pin Male – P/N: MS-3106A-28-16P
  • (4) MS Cable Clamp 24/28 – P/N: MS-3057-16A
  • (4) MS Connector 14 Pin Male – P/N: 3106A-20-27P
  • (4) MS Cable Clamp 20/22 – P/N: MS-3057-12A
  • (3) MS Connector 24 Pin Male – P/N: MS-3106A-24-28P
  • (3) MS Cable Clamp 24/28 – P/N: MS-3057-16A
  • (2) MS Connector 26 Pin Male – P/N: MS-3106A-28-12P
  • (2) MS Cable Clamp 24/28 – P/N: MS-3057-16A
  • Power Cord – P/N: P-2392

2 and 3 Year Extended Warranties are available for this product. Please refer to the Attachments tab for further information on the program.

DISCLAIMER NOTICE: Amron’s chamber communications are designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our communications products (including communicators, speakers, entertainment systems, and other communications accessory items) are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Misuse of our chamber communicator products in high-concentration Oxygen environments may result in serious injury and/or death.
