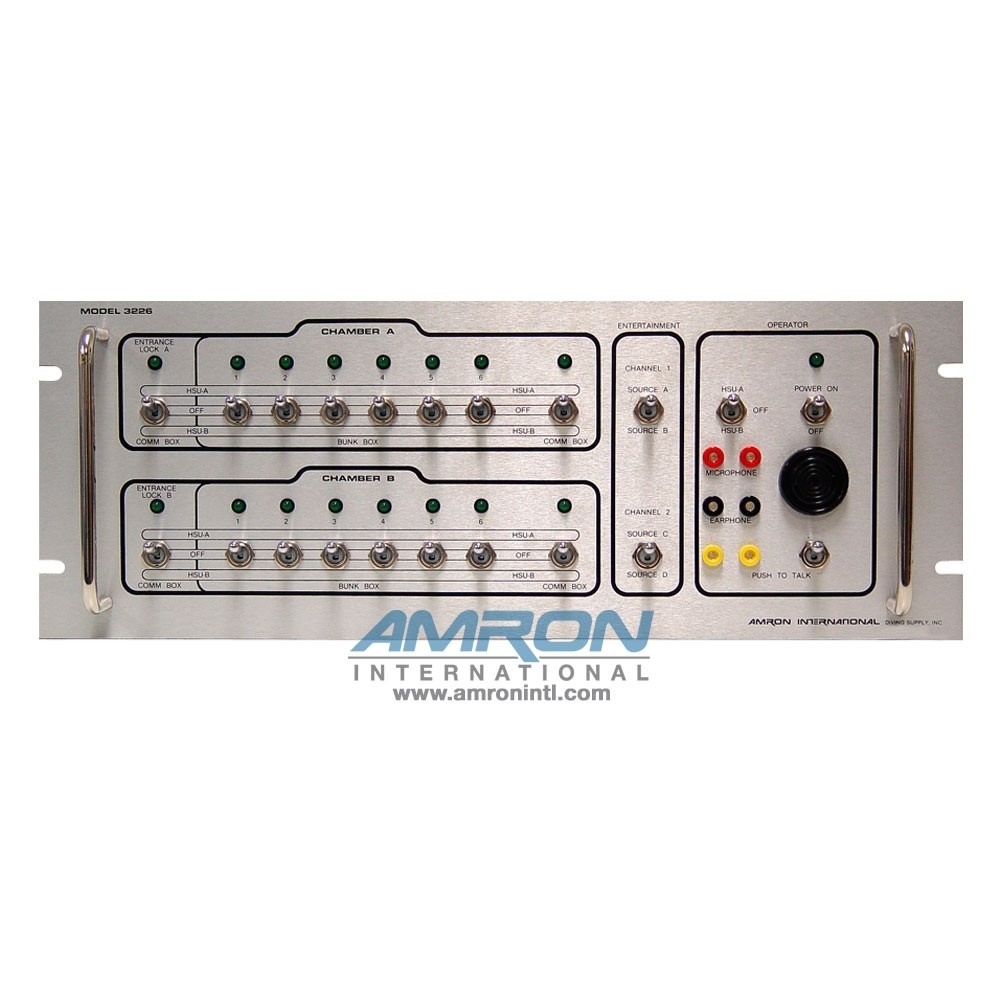

Amron 3226 Chamber Communication Routing Panel

Features:

• Twelve bunk station channels, arranged in two chambers, six stations per chamber
• Two Communication Station channels per chamber: one chamber, one entry lock with Push To Call
• Two Helium Unscrambler channels. Each can be used as primary communication or split for two independent conversations
• Two Entertainment channels with two audio sources per channel
• Audio/Visual call indicator for each chamber location
• Operator can route private or conference conversation through one helium unscrambler, leaving the other for chamber monitoring
• Includes a noise canceling hand-held microphone for operator

Chamber Communication Routing Panel – P/N: 3226 Includes:

• Hand-Held Push-to-Talk Microphone – P/N: 2405-28
• (12) MS Connector Cables 14 Pin Female – P/N: MS-3106A-20-27S
• (12) MS Cable Clamps 20/22 Shells – P/N: MS-3057-12A
• (4) MS Connector Cables 7 Pin Male – P/N: MS-3106A-16S-1P
• (4) MS Cable Clamps 16 Shell – P/N: MS-3057-8A
• (2) MS Connector Cables 5 Pin Male – P/N: MS-3106A-14S-5P
• (2) MS Cable Clamps 14 Shell – P/N: MS-3057-6A
• (2) MS Connector Cables 20 Pin Male – P/N: MS-3106A-28-16P
• (2) MS Cable Clamps 24/28 Shells – P/N: MS-3057-16A
• (2) MS Connector Cables 4 Pin Female – P/N: MS-3106A-14S-2S
• (2) MS Cable Clamps 14 Shell – P/N: MS-3057-6A
• (1) Power Cord – P/N: P-2392
• User Manual

Specifications:

• Call Circuit Channels: 16 each 8 per chamber (6 Bunk Boxes,1 Comm. Box, and 1 Entry Lock)

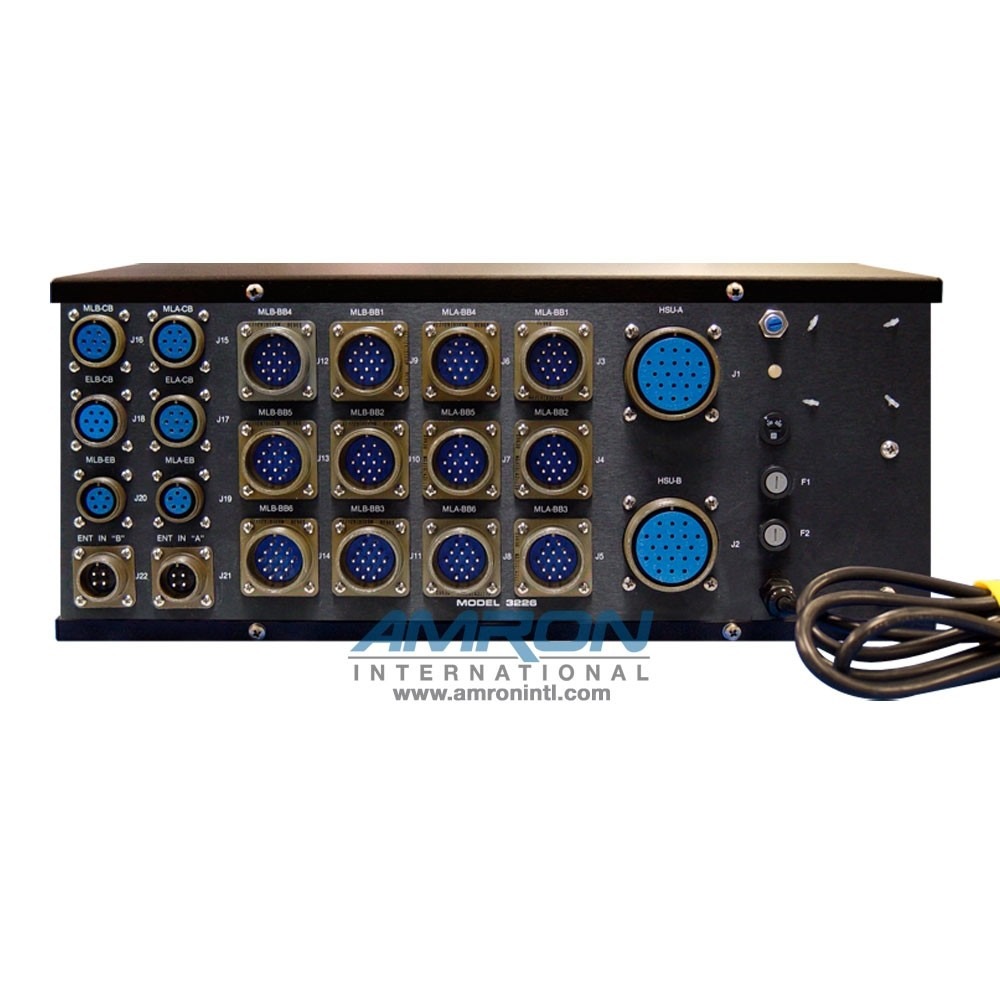

• Input/Outputs: MS connectors, on rear panel (MIL- C- 5015)
• Enclosure: 19 in. Retma Rack Mount, anodized aluminum
• Height: 7 in. (17.8 cm)
• Width: 19 in. (48.3 cm)
• Depth: 13 in. (33 cm)
• Weight: 10 lbs. (4.5 kg)

DISCLAIMER NOTICE: Amron’s chamber communications are designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our communications products (including communicators, speakers, entertainment systems, and other communications accessory items) are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Misuse of our chamber communicator products in high-concentration Oxygen environments may result in serious injury and/or death.
