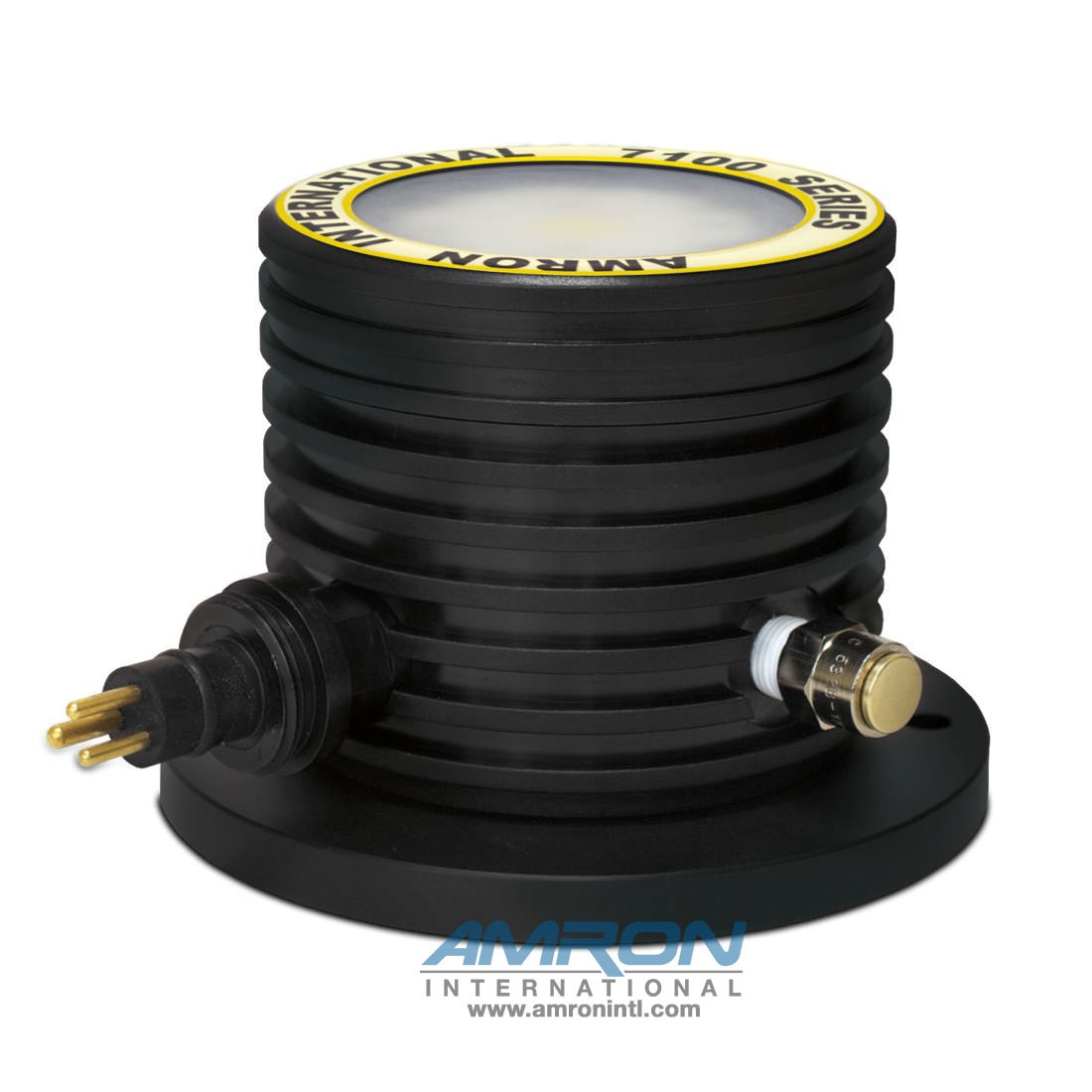

LED Hyperbaric Chamber Light (Frosted)

Category:
Description

Features

  • Exclusive 6 level light intensity dimmer touch pad
  • Long lasting LED technology with 50,000 hour life
  • Low profile design
  • Adjustable integrated mounting plate
  • 4-pin wiring configuration
  • Low heat with high-performance heat sink

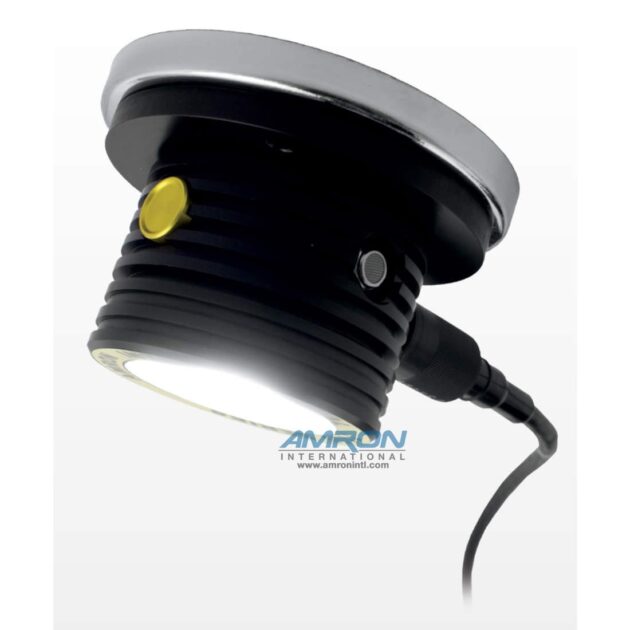

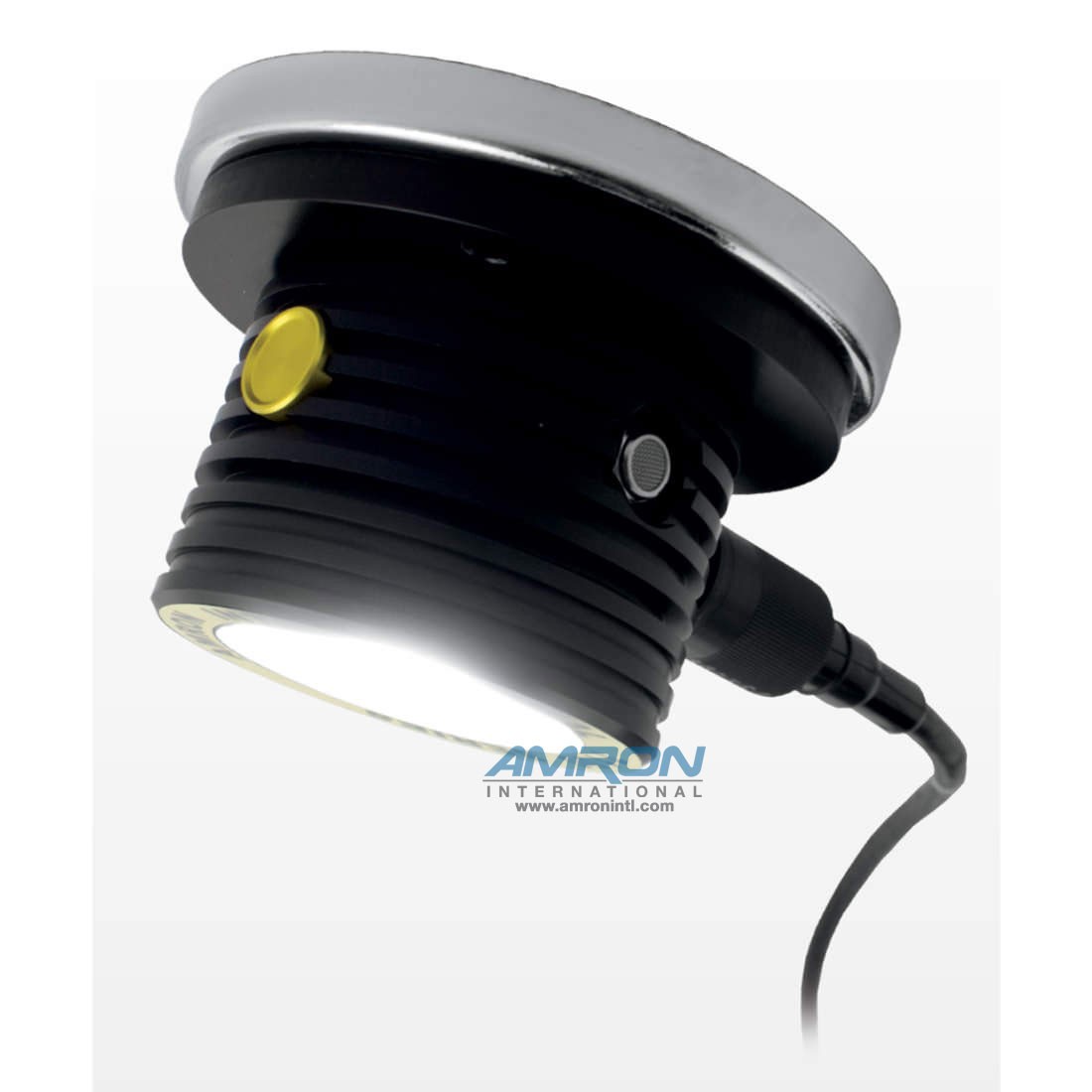

  • Optional magnetic base available
  • Optional red and blue lens filters

Specifications

  • Lamp type: Bright white LED
  • Filter: Frosted

Electrical Specifications

  • Operating Voltage Range: 9-28 VDC
  • Input Power: 15 Watts (maximum)
  • Beam Angle: 120°
  • Light Level: Adjustable up to 1000 lumens
  • External Dimmer Control Voltage (7120 only): 0-10 Volts

Mechanical Specifications

  • Housing: 6061 Aluminum
  • Finish: Black Hard Anodized, MIL-A-8625, type III class 2
  • Pressure Rating: 1000 fsw (300 msw)

Mating Connectors

  • 7120 – 4-pin Marsh Marine: RMG-4-FS (not included)

Locking Sleeve

  • Delrin – Marsh Marine: G-FLS-D (not included)
  • Stainless Steel – Marsh Marine: G-FLS-S (not included)

Dimensions

  • Height: 2.6 inches (67 mm)
  • Body Diameter: 3.3 inches (84 mm)
  • Mounting Plate: 4.5 inches (114 mm)
  • Weight: 1.50 lbs (0.68 kg)
