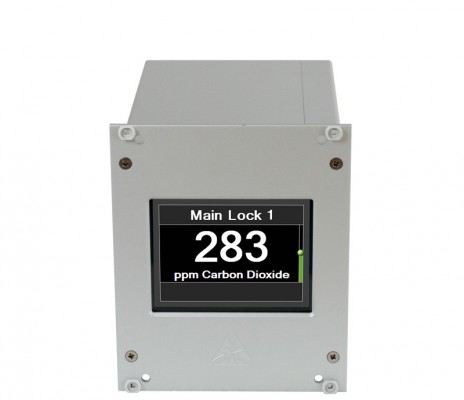

SAT-5 Carbon Dioxide Analyser

Category:
Description

The SAT-5 Carbon Dioxide analyser uses the latest sensor technology and signal processing electronics to provide outstanding performance and value for money. All analysers in the SAT-5 range include: built in sample flow controller, electronic flow meter with flow failure alarm and barometrically compensated readings. They also have built in black box recording and Ethernet connectivity as standard.

All the SAT-5 instruments are fully configurable from their touch screen user interface. Important settings are password protected to prevent unauthorised adjustment.

The carbon dioxide sensor used in this analyser is a non-dispersive infrared (NDIR) sensor. It has no moving parts and no depleting element, which gives it a very long operational lifetime. The infra-red source and detector are based on LED and photodiode technology, which have many advantages compared to traditional sources and detectors.

Each sensor is individually temperature compensated to improve accuracy. The measurement range is 0-10,000 ppm of carbon dioxide with 1ppm resolution and a response time of less than 30 seconds.
