Tescom 04-1D3AAANNZ is a space-saving and lightweight miniature regulator that offers minimal internal volume and is easy to purge resulting in less retention.

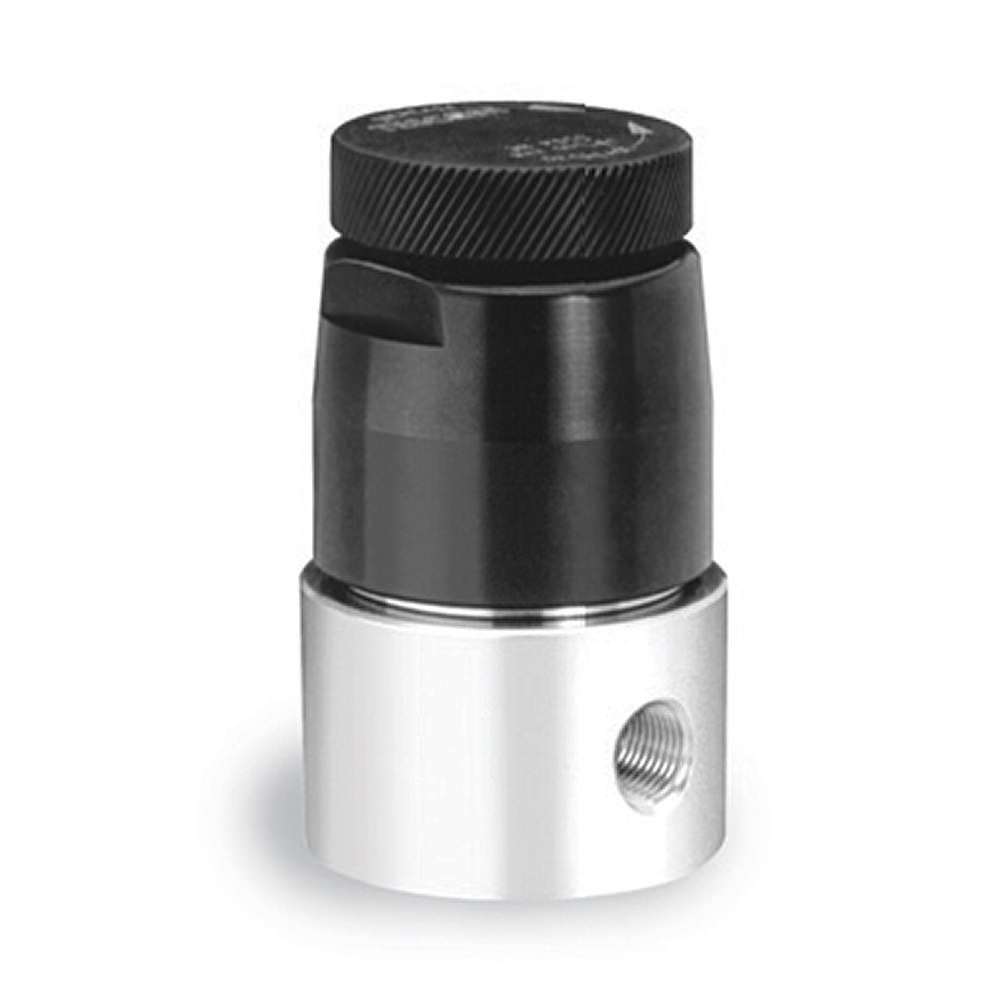

TESCOM 04-1D3AAANNZ Pressure Reducing Regulator 1/4 inch NPT – 316 Stainless Steel
In stock
Application:
- Analyzers
- Lecture bottles
- Sampling systems
Features:
- Compact size (3 inch / 76 mm high) and constructed with lightweight materials
- Elgiloy® diaphragm provides accurate and stable pressure control
- Minimal internal volume allows for rapid purging and carry-over
- Corrosion resistant
Specifications:
- Body and Seat Material: 316 Stainless Steel
- Maximum Inlet Pressure: 3500 PSIG (241 bar)
- Outlet Pressure Ranges: 0-100 PSIG (0-6.9 bar)
- Design Proof Pressure: 150% of maximum rated
- Leakage Internal: Bubble-tight
- Leakage External: < 1 x 10-6 atm cc/sec He
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Flow Capacity: Cv = 0.06
- Maximum Operating Torque: 30 in-lbs. (3.4 N•m)
- Decaying Inlet Characteristic: 1.0 Change: 100 psig (6.9 bar)
- Gauge Ports: No Gauge Port
Media Contact Materials:
- Body: 316 Stainless Steel
- Diaphragm: Elgiloy®
- Seat: CTFE
- Friction Sleeve (inner): Teflon®
- Remaining Parts: 316 Stainless Steel
Other:
- Cleaning: CGA 4.1 and ASTM G93
- Connections: 1/4 inch FNPT
- Internal Volume: 3.03 cc
- Weight (without gauges): 1 lb. (0.5 kg)
