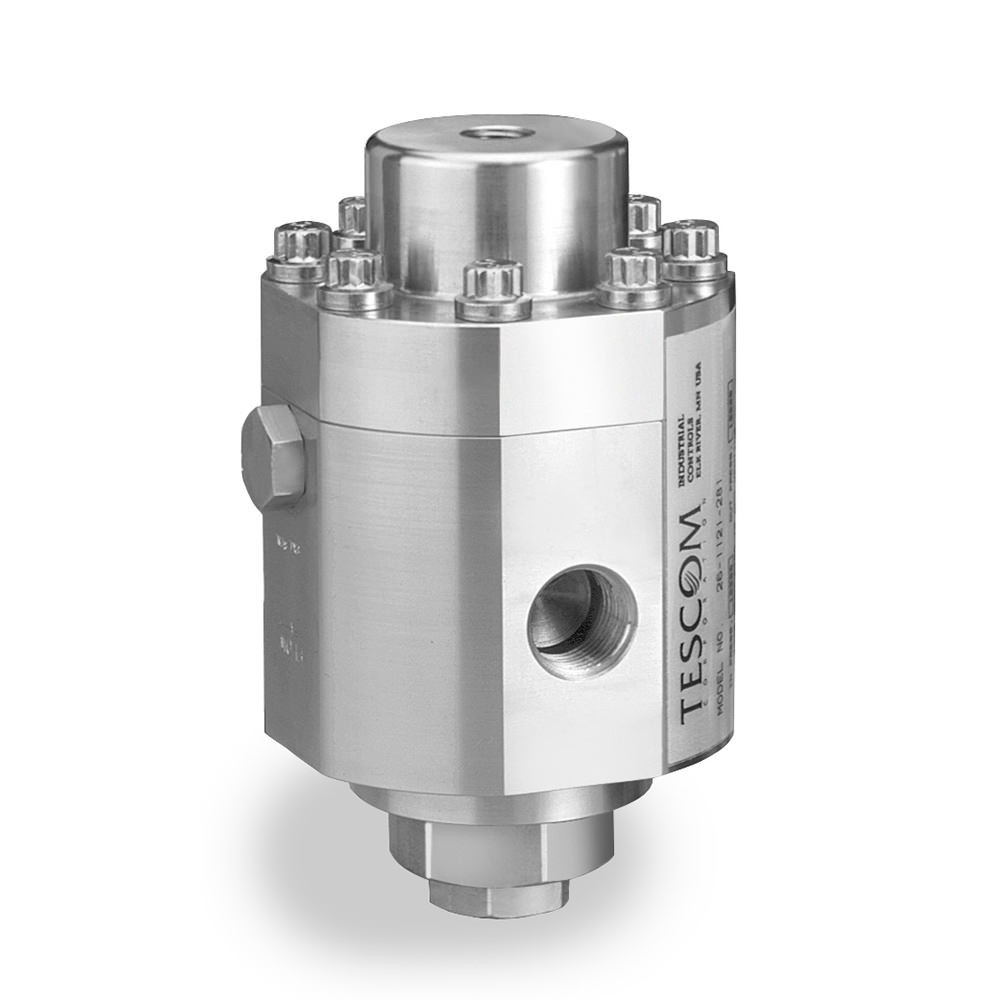

TESCOM 26-1221-1161-088 Pressure Reducing Regulator with Modified Valve Cartridge Control Dome Load – 303 Stainless Steel

In stock

Applications:

  • Fueling
  • Facilities supply

Features:

  • Diaphragm sensed and highly sensitive
  • Modular construction for easy service
  • External sensing available for improved accuracy
  • Balanced main valve increases seat life
  • Mounts in any position
  • Low droop and lockup

Specifications:

  • Body Material: 303 Stainless Steel
  • Maximum Inlet Pressure: 6000 PSIG (414 bar)
  • Outlet Pressure Range: To maximum inlet
  • Design Proof Pressure:150% maximum rated operating
  • Leakage: Bubble-tight
  • Flow Capacity: Cv = 3.3
  • Inlet & Outlet Port Type: SAE
  • Dome Port: 1/4 inch MS33649
  • Port Size: 3/4 inch
  • Orifice Size: 1/2 inch
  • Operating Temperature: -40°F to 165°F (-40°C to 74°C)

Media Contact Materials:

  • Seat: Vespel®
  • Diaphragm: Buna-N
  • O-Rings: Buna-N
  • Back-up Rings: Teflon®
  • Gasket: CTFE
  • Retaining Ring: 15-7 Stainless Steel
  • Valve Cap: 17-4 Stainless Steel
  • Remaining Part: 300 Series Stainless Steel

Other:

  • Loading Method: External
  • Modification Feature: Modified Valve Cartridge Control Dome Load
  • Cleaning: CGA 4.1 and ASTM G93
  • Weight Stainless Steel: 25 lbs. (11.3 kg)
Brands:
SKU: 26-1221-1161-088

Tescom 26-1221-1161-088 Pressure Reducing Regulator with modified valve cartridge control dome load is a high flow pressure reducing regulator and is externally loaded with 6000 psig (414 bar) maximum inlet and outlet pressures.
