Tescom 44-1111-24-001 high pressure, low flow venting regulator with Non-Venting and Viton o-rings offers a piston sensed design, control pressures of 0-500 PSIG / 0-34.5 bar with a low torque setting and large hand-knob.

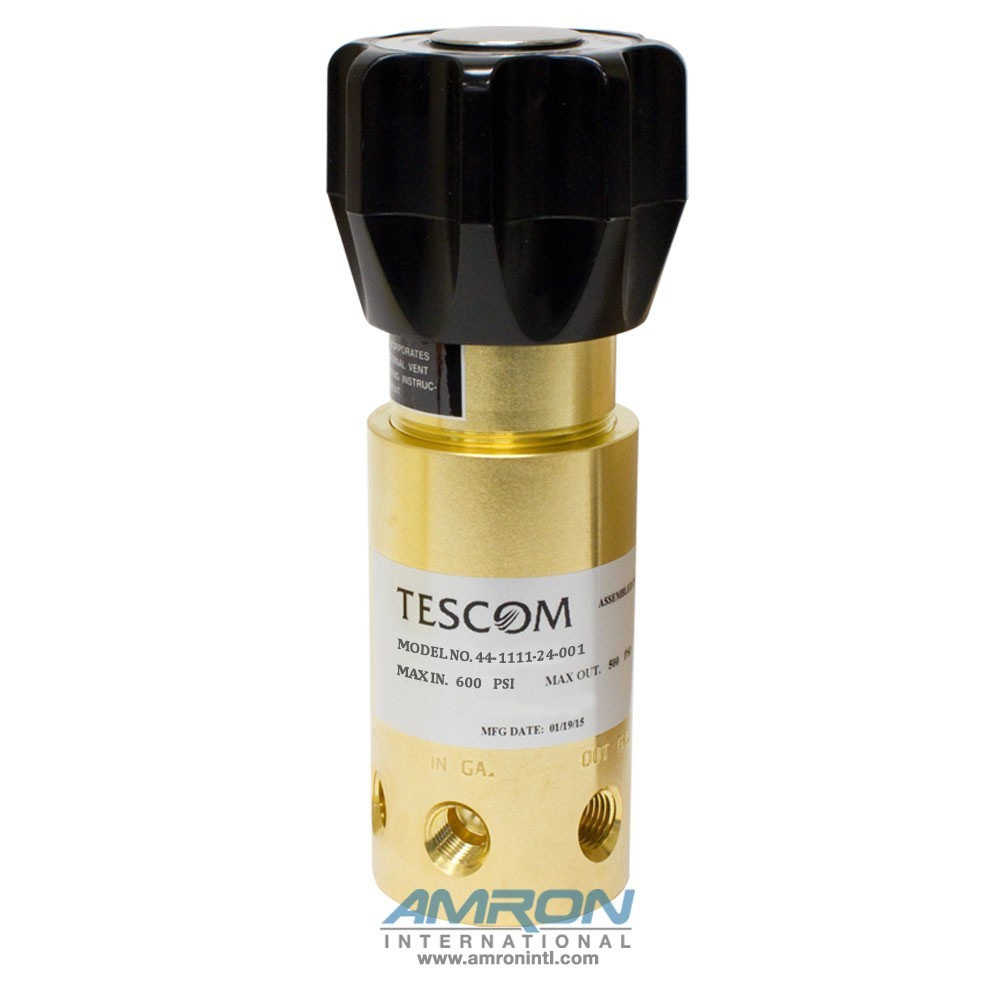

TESCOM 44-1111-24-001 Pressure Reducing Regulator Brass 0-500 PSIG with Non-Venting and Viton O-Rings
In stock
Applications:
- Ground Support Equipment (GSE)
- Support pressure panels
- Aircraft charging carts
- R & D laboratories
- Calibration equipment
Features:
- Removable valve assembly module permits easy repair
- Excellent sensitivity through a wide range of pressure settings
- Piston style sensor offers extra safety and reliability
- Unbalanced stem assists positive shut-off
- Inlet and outlet gauge ports standard
- Venting is standard
- Regulator vents to zero PSIG in all pressure ranges
Specifications:
- Maximum Rated Inlet Pressure: 6000 PSIG / 414 bar
- Outlet Pressure Range: 0-500 PSIG / 0-34.5 bar
- Design Proof Pressure: 150% of maximum rated inlet
- Leakage: Bubble-tight
- Operating Temperature: -40 degrees F to +165 degrees F (-40 degrees C to +75 degrees C)
- Flow Capacity: Cv = .06
- Maximum Operating Torque: 35 in.-lb. (3.95 Nm)
- Body Material: Brass
- Inlet and Outlet Ports: 1/4 in. FNPT
- Modification Features:
- Non-Venting
- Viton® O-Rings
Media Contact Materials:
- Body: Brass
- Filter Brass Body: 40 Micron (nominal) – Bronze
- Main Valve Seat: Vespel®
- Vent Valve Seat: CTFE
- O-Rings: Buna-N
- Back-up Rings: Teflon®
- Remaining Parts: 300 Series Stainless Steel
Other:
- Cleaning: CGA 4.1 and ASTM G93
- Weight: 4.75 lbs. (2.15 kg)
