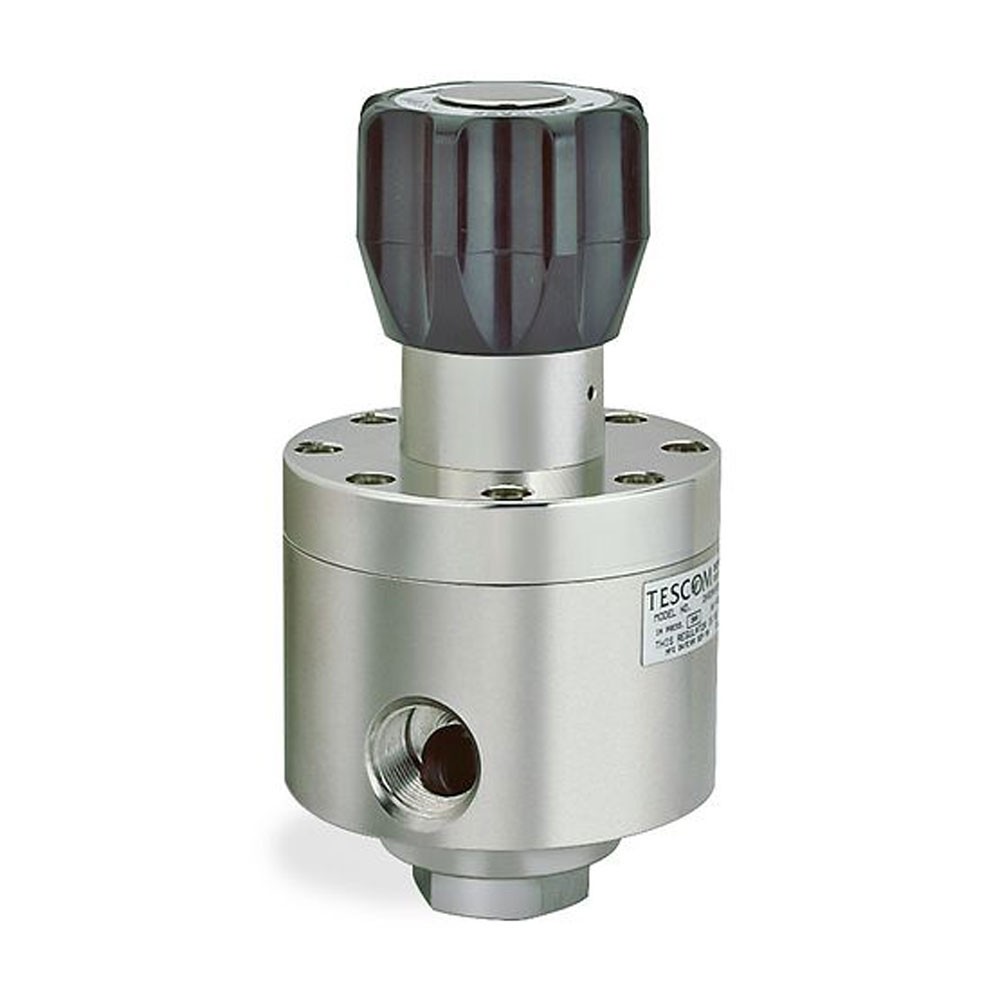

TESCOM DHH13BEC9KITN DH Series Single Stage Regulator 0-150 PSIG for Non-Metallic Kit

In stock

Industries:

  • Automotive Line
  • Pharmaceutical manufacturing plants
  • Chemical manufacturing plants
  • Emergency vehicles that have a series of full hood mask

Applications:

  • Purging
  • Blanketing
  • High flow inerting
  • Heat treating
  • Shielding gases

Features:

  • Diaphragm sensed – highly sensitive
  • Excellent repeatability
  • Very high flows at low pressures
  • Performs well at very low pressure differentials such as dewar-supplied processes
  • Multi-drop breathing air stations

Specifications:

  • Load Type: Spring
  • Outlet pressure Range: 0-150 psig
  • Design proof pressure: 150% of rated inlet
  • Leakage: Bubble-tight
  • Ambient operating temperature: -20°F to +165°F / -20°C to +74°C
  • Flow Capacity: Cv = 5.0
  • Optional Items: None
  • Porting Configuration: For Non-Metallic Kit

Media Contact Materials:

  • Body, Bonnet, Back-cap: Brass
  • Diaphragm: Ethylene Propylene
  • O-Ring and Valve Seat Material: Buna-N
  • Vent Seat: CTFE

Other:

  • Cleaning: CGA 4.1 and ASTM G93 (Intermediate Level)
  • Weight: Brass: 16lbs / 7.2 kg
Brands:
SKU: DHH13BEC9KITN

Tescom DH Series Single Stage Regulator 0-150 PSIG for Non-Metallic Kit DHH13BEC9KITN
