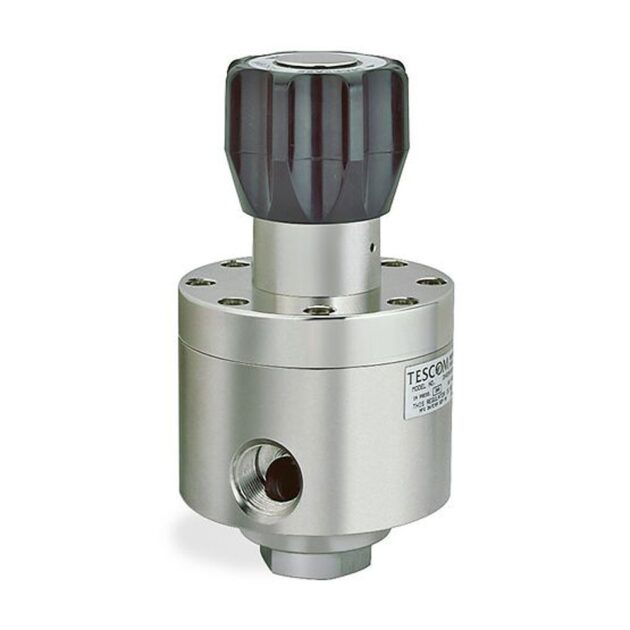

TESCOM DHH65VEVPB33F-03 DH Series Single Stage Regulator 0-250 PSIG with Panel Mount

In stock

Industries:

  • Automotive Line
  • Pharmaceutical manufacturing plants
  • Chemical manufacturing plants
  • Emergency vehicles that have a series of full hood mask

Applications:

  • Purging
  • Blanketing
  • High flow inerting
  • Heat treating
  • Shielding gases

Features:

  • Diaphragm sensed – highly sensitive
  • Excellent repeatability
  • Very high flows at low pressures
  • Performs well at very low pressure differentials such as dewar-supplied processes
  • Multi-drop breathing air stations

Specifications:

  • Load Type: Spring
  • Outlet pressure Range: 0-250 psig
  • Design proof pressure: 150% of rated inlet
  • Leakage: Bubble-tight
  • Ambient operating temperature: -20°F to +165°F / -20°C to +74°C
  • Flow Capacity: Cv = 5.0
  • Porting Configuration: 2 gauge ports at 60°
  • Inlet: 3/4″ NPT
  • Outlet: 3/4″ NPT
  • Guage: 1/4″ Gauges only NTP
  • Modification: Panel Mount

Media Contact Materials:

  • Body, Bonnet, Back-cap: 316 Stainless Steel
  • Diaphragm: Ethylene Propylene
  • O-Ring and Valve Seat Material: Viton
  • Vent Seat: Vespel

Other:

  • Cleaning: CGA 4.1 and ASTM G93 (Intermediate Level)
  • Weight: Stainless Steel: 15 lbs / 6.8 kg
Brands:
SKU: DHH65VEVPB33F-03

Tescom DH Series Single Stage Regulator 0-250 PSIG with Panel Mount DHH65VEVPB33F-03
