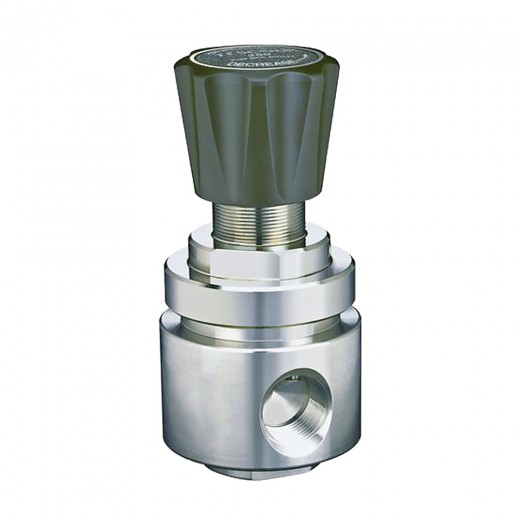

TESCOM FR2063-2122-019 Gas Pressure Regulator 0-150 PSIG

In stock

Applications:

  • Low pressure purge

Features:

  • Accurate and designed to provide high flow at low control pressure
  • High-flow, Cv = 1.8
  • Metal-to-metal sealed diaphragm
  • Dome loaded version is available
  • Gauge ports are available

Specifications:

  • Maximum Inlet Pressure: 500 psig / 34.5 bar
  • Outlet Pressure Ranges: 0-150 psig / 0-10.3 bar
  • Design Proof Pressure: 150% maximum rated
  • Leakage:
    • Internal: Bubble-tight
    • External: < 2 x 10-8 atm cc/sec He
  • Operating Temperature: -40°F to 165°F / -40°C to 74°C
  • Flow Capacity: Cv = 1.8
  • Inlet and Outlet Port Type: NPT
  • Inlet and Outlet Port Size: 3/4 inch
  • Modification: 1/4 inch gauge port at 90°

Media Contact Materials:

  • Body: 316 Stainless Steel
  • Seat: FEP, PTFE
  • Retainer Seat: Nitronic 60
  • O-Ring: PTFE
  • Diaphragm: 316 Stainless Steel
  • Spring: 316 Stainless Steel
  • Remaining Parts: 316 Stainless Steel

Other:

  • Cleaning: CGA 4.1 and ASTM G93
  • Weight without gauges: 6.0 lbs / 2.7 kg
Brands:
SKU: FR2063-2122-019

Tescom Gas Pressure Regulator 0-150 PSIG FR2063-2122-019. FR2000 Series regulator is extremely accurate and designed for high flow at low outlet pressure. The diffusion-resistant metal diaphragm seal ensures gas purity and leak integrity. Ideal for use in low-pressure purge.
